Introduction of Rhinoceros

1. Open Rhinoceros

1. Find the icon of Rhinoceros 5 (64-bit) OR Rhinoceros 4.

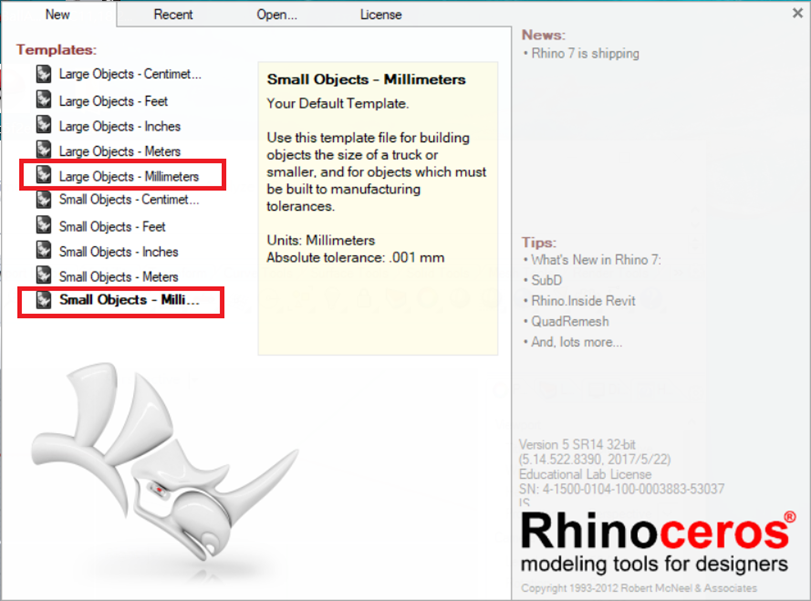

2. When you open Rhinoceros, choose a template, you can choose:

   1. Large Objects - Millimeter OR

   2. Small Objects - Millimeter

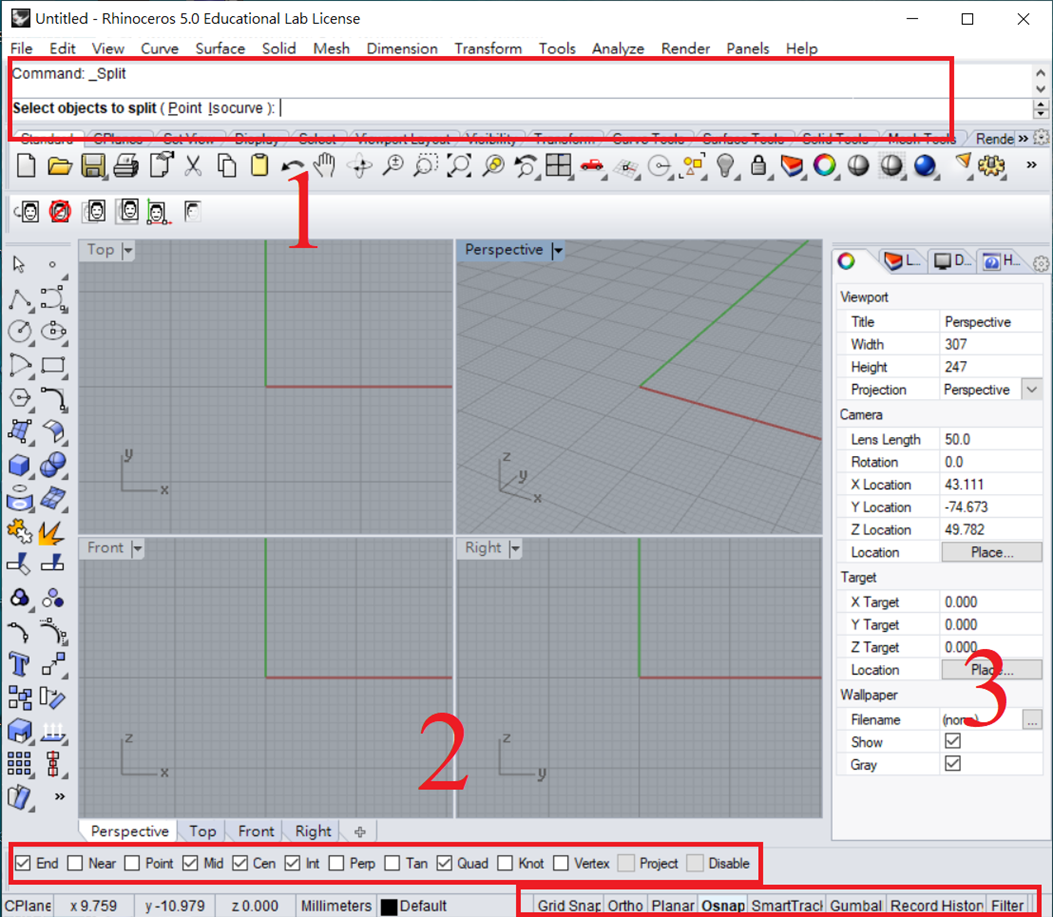

2. User Interface

There are three main parts in the user interface:

1. Command line

2. Object Snap

3. Status bar

1. Command line

• General drawing software has many functions, which are distributed across multiple interfaces. Usually, there will be a search bar or command line to facilitate users in entering commands directly.

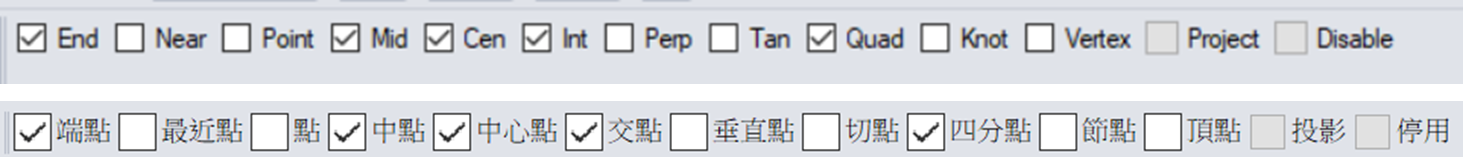

2. Object Snap

• We need to focus on Osnap, which is 物件鎖點in Chinese(You can see the English and Chinese version on the above graph)

• Also, Grid Snap (鎖定格點)feature is usefully

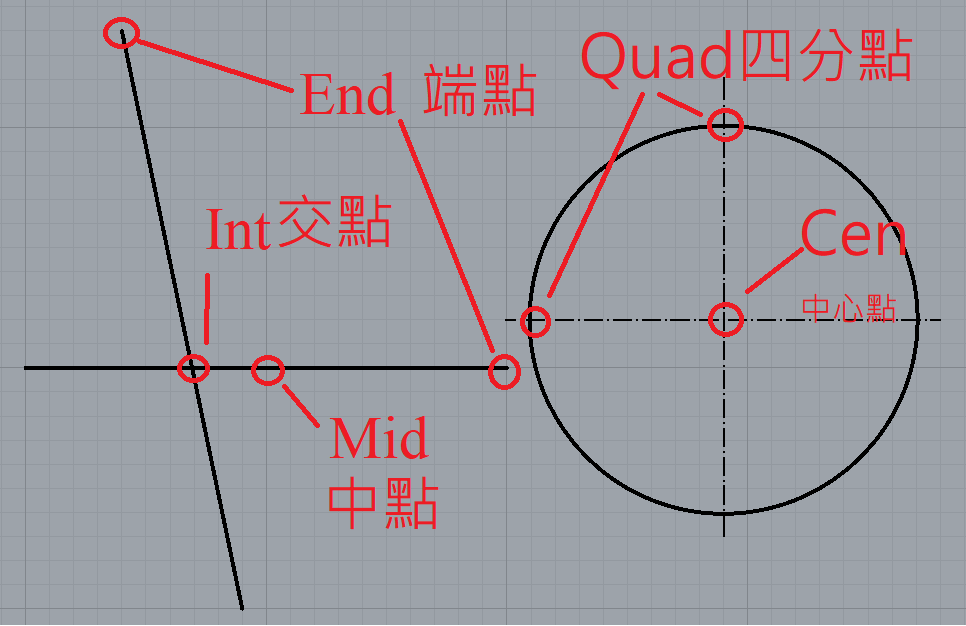

• Osnapstand for "Object Snap", which can snap(鎖定)the special point in the geometry

Start to draw

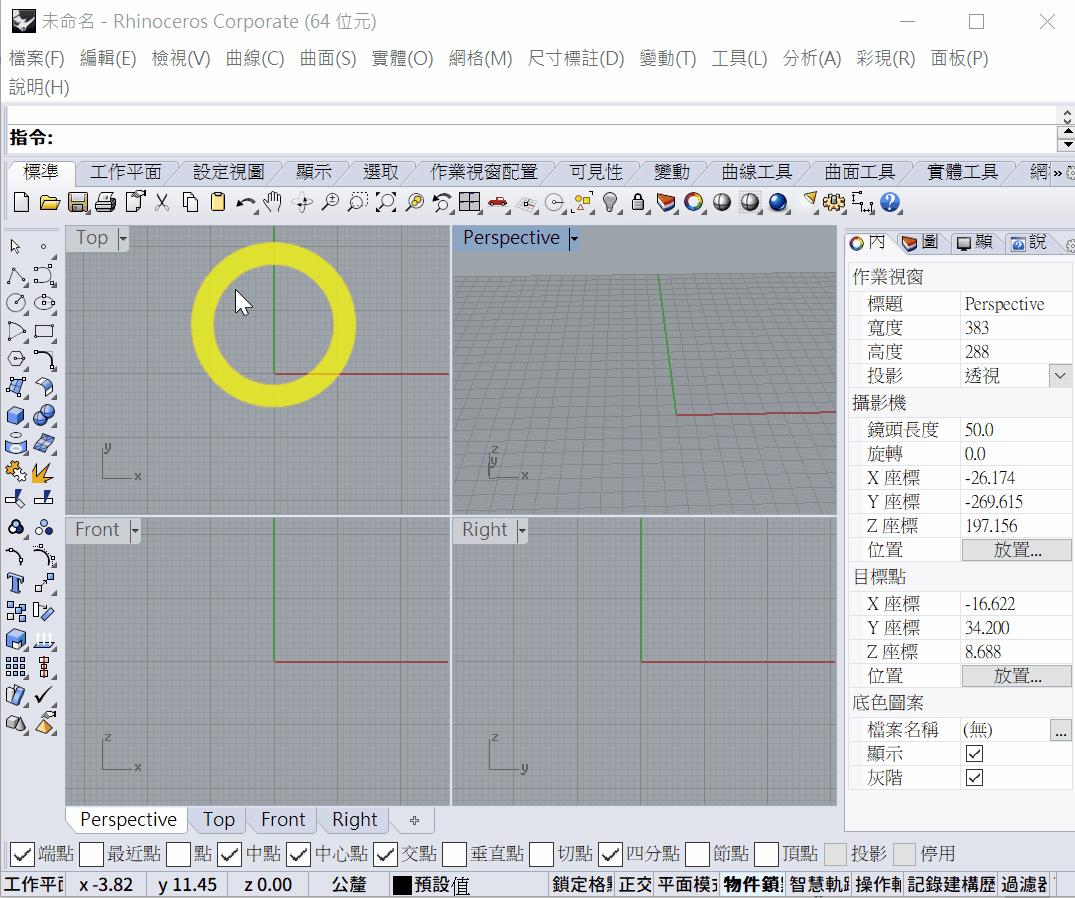

1. Only focus on the TOP view, DOUBLE CLICK the TOPicon

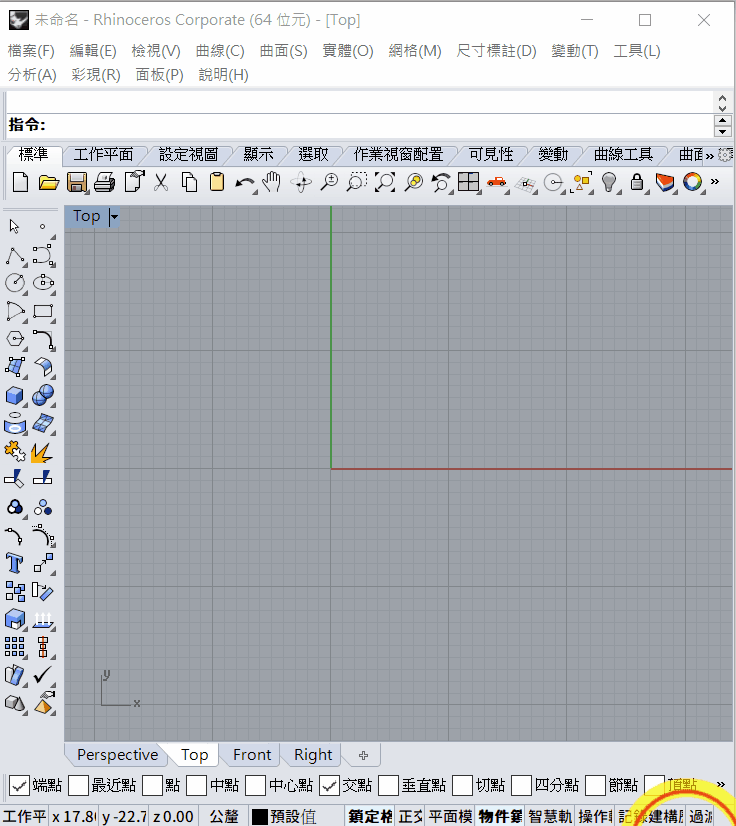

2. Hold mouse right click to drag the view

1. Line/Polyline

Line

1. Type command line to draw line

2. First select the start point of line

3. Then select the end point

4. If you want to repeat the line command, simply click right click of mouse OR press the spacebar of keyboard

To draw a line with certain length:

1. You can select the first point

2. Then input the length of the line, e.g. 10

3. There will be a white line to link the curser, but the black line to show the 10mm length

4. Hold the key SHIFT to define the line horizontal(水平) or vertebral(垂直)

5. Click the mouse left click to confirm the line

To draw a line with certain angle and length:

1. You can first select the start point

2. Input <60 and press ENTER to constrain the line 60 degree along the x-axis

3. Input 10 and press ENTER to constrain the length of line as 10mm

4. Click mouse left to confirm and finish

Polyline

If you want to draw a few continues line segment, you can use command polyline

2. Rectangle

1. Use command rectangle to draw rectangle

2. There are 3 method to draw:

Diagonal mode

The default mode is diagonal mode, just select the 2 corners of the rectangle

3 point mode

You can type command P after the command rectangle, or just click the 3 point in the command line, then you can use 3 point to define a rectangle

Center mode

Or you can use center method, define the center point of the rectangle, then define the corner

3. Circle

1. Use command circle to draw circle:

2. There are a few method:

Center mode

The default mode is center mode, first select the center point of circle, then use command R or D to define the radius or diameter of the circle

2 point mode

Or use 2 point mode, define 2 points as the diameter of the circle

4. Trim

Use the command Trim to trim the extra line.

1. Type command Trim

2. Select the objects that you want to trim, then press spacebar, ENTEROR mouse right click to confirm

3. Select the segment that you want to trim to delete it, press spacebar, ENTEROR mouse right click to finish.

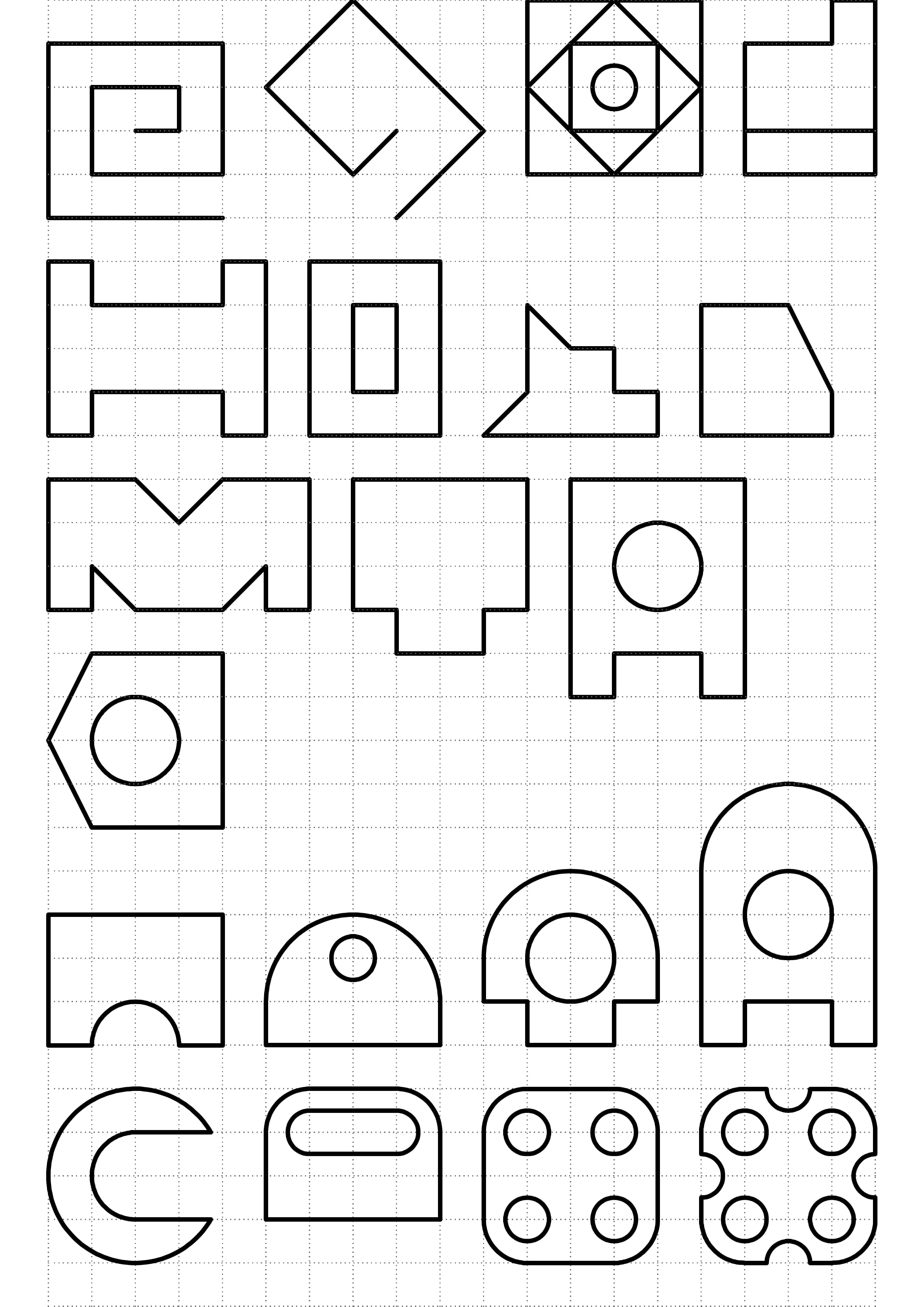

Exercise

1. Each grid is 10x10mm

PDF version here --> week 1.pdf
